Standard Glass Electrical Insulator

Commodity name： Standard Glass Electrical Insulator

Product Details

Glass insulator ( glass electrical insulator, high voltage glass insulator, glass power line insulators) is a device primarily used in electrical and telecommunication systems to support and separate electrical conductors from their surrounding environment. it is typically made from glass materials that have high resistance to electrical current, allowing them to prevent the flow of electricity between conductors and the structures they are mounted on. the main purpose of a glass suspension insulators is to maintain the integrity and safety of electrical and telecommunication lines. by providing a barrier between the conductors and the structures (such as utility poles or towers),

CATALOG No	UG40B110/200N	G70B146/320N	UG100B1271320N UG100B146/320N	G120B127/320N G120B146/320N	UG160B146/400N UG160B155/400N UG160B170/400N

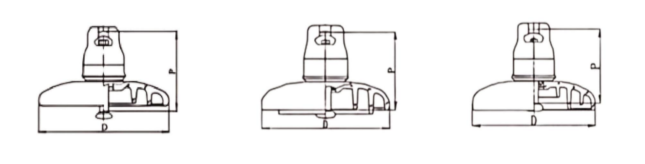

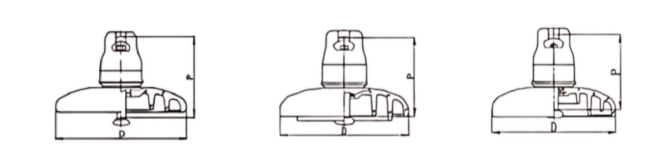

Figure No	QH-01-01	QH-02-01	QH-03-01	QH-04-01	QH-05-01
Min.Mechanical failing load (KN)	40	70	100	120	160
Nominal diameter D(mm)	178	255	255	255	280
Nominal spacing P(mm)	110	146	127/146	127/146	146/155/170
Nominal creepage distance(mm)	200	320	320	320	400
Standard coupling	11	16	16	16	20
Dry lightning impulse withstand voltage(KV)	50	100	100	100	110
Wet power frequency withstand voltage(KV)	25	40	40	40	45
Power frequency puncture voltage(KV)	90	130	130	130	130
Radio interference voltage (μ V) 10kV 1MHz	50	50	50	50	50
Corona visual test P/C(KV)	18/22	18/22	18/22	18/22	18/22

CATALOG No	UG210B170/400N	UG240B170/400N	UG300B195/485N	UG400B205/550N UG420B205/550N	UG530B240/635N UG550B240/635N
Figure No	QH-06-01	QH-07-01	QH-08-01	QH-08-01	QH-09-01
Min.Mechanical failing load (KN)	210	240	300	400/420	530/550
Nominal diameter D(mm)	280	280	320	360	380
Nominal spacing P(mm)	170	170	195	205	240
Nominal creepage distance(mm)	400	400	485	550	635
Standard coupling	20	20/24	24	28	32
Dry lightning impulse withstand voltage(KV)	110	110	130	140	140
Wet power frequency withstand voltage(KV)	45	45	50	55	55
Power frequency puncture voltage(KV)	130	130	130	140	140
Radio interference voltage (μ V) 10kV 1MHz	50	50	50	50	50
Corona visual test P/C(KV)	18/22	18/22	18/22	18/22	18/22
